Dock levelers
Categories :
- Mechanical leveller
- Hydraulic leveler
- Ecologic dock leveler (air system)
- Vertical leveler
- Mini levelers
- Fixed quay
- Mobile quay
The docks levelers are used to fill and adjust the differences between various levels. For example, the height of a truck which is unloading the merchandises may be different from the height of the reception door; in this case a dock leveler will be essential.
Our full width dock levelers, either hydraulic or mechanical, adapt with the majority of loading docks. If the given space does not allow the use of a traditional leveler, one of our edge-of-dock levelers is always an option.
Loadmaster also offers lifting docks as well as equipment intended for handling in order to facilitate the loading and unloading as well as the work of the employees while reducing times of lifting and the risks of injuries.

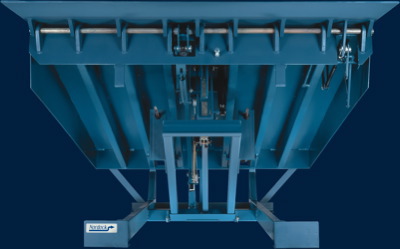

Mechanical leveller
Mechanical dock
Proposing a design with an “I”shaped robust beam, the leveler does not require any manual lifting. When the employee at the dock pulls the release chain, the plate raises and the lip is locked in position. Then the employee can proceed to the leveling to the platform of the truck.
Capacity
Standard Capacity going from 11 370 kg to 13 640 kg (25 000 to 30 000 lb).

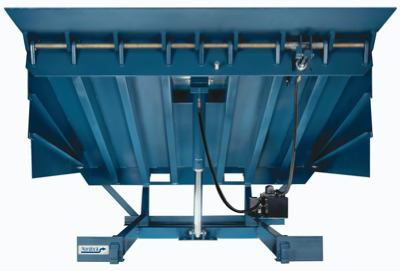

Hydraulic leveler
Hydraulic dock leveler of
This leveler has an “I” shape and a pushbutton remote placed in a mural unit. Since the plate’s and the lip commands are independent from each other it makes it possible to accelerate the cycle of operation as well as the operations of loading and unloading.
Capacity
Standard Capacity going from 11 370 kg to 36 370 kg (25 000 to 80 000 lb).

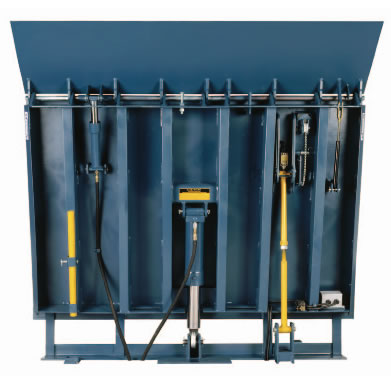

Vertical leveler
Dock Leveler with vertical
retraction
Reduces the costs of heating and losses of goods since the leveler only authorizes the opening of the truck doors once it is safely fastened with the dock. The travelling doors with vertical lifting are entirely closed, thus making it possible to reduce the losses of energy. The leveler of series VS is placed in a low-size well and includes a lowering hydraulic system (different buttons for lifting, handling of the forage ladder, lowering and the function re-integration). The employee of the dock must press the button and maintain it pressed to lower the leveler.
Capacity
Standard Capacity going from 13 640 kg to 15 910 kg (30 000 to 35 000 lb).
Mini levelers
Mechanical model
Features
Mini-levelers for
mechanical and hydraulic dock
No manual lifting is necessary. When pulling on the relaxation handle, the plate is placed in driving position under the action of a spring. While pushing on the handle, the plate drops and the lip is released automatically.
Capacity
Standard Capacity going from 9 090 kg (20 000 lb) to 18 200 Kg(40 000 lb).
Hydraulic model
Features
A pushbutton with remote control makes it possible to raise the electro-hydraulic plate. The operator presses on the pushbutton of constant pressure type to raise the plate in driving position. When the employee releases the button, the lip lets go while the plate lowers.
Capacity
Standard Capacity going from 9 090 kg (20 000 lb), to 13 640 kg (60 000 lb).
Fixed dock
Fixed dock
Conceived for loading/unloading operations when: there is no dock, the access is on ground level or the height of the trailers is lower than the capacity of the dock leveler. The dock includes safety devices of serie including a protect-toes in bevel, a chain to limit the access to the personnel, an integrated strut of maintenance, a circuit breaker with hydraulic swiftness as well as edge lines with great visibility. Elevator dock with simple chisel assembled to the floor or in a well. Electrohydraulic operation.
Capacity
Standard Capacity going from 1 818 kg à 9 091 kg (4 000 lb à 20 000 lb).
Mobile dock
Mobile dock series «S»
Features
Mobile dock series «S»
Apparatus of high quality, just like the dock of series “ED”. Thanks to the carriage offered in option, the unit is appropriate for many types of dock and it can be stored inside for the night.
Capacity
Standard Capacity going from 1 364 kg à 2 727 kg (3 000 lb à 6 000 lb).
 |
 |
